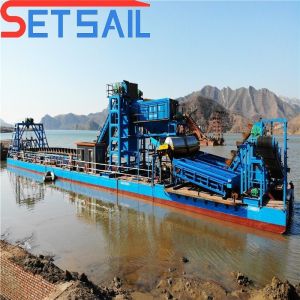

Customized Carbon Steel Bucket Chain River Gold and Diamond Dredger with Trommel Screen

    Buy cheap Customized Carbon Steel Bucket Chain River Gold and Diamond Dredger with Trommel Screen from wholesalers

    Buy cheap Customized Carbon Steel Bucket Chain River Gold and Diamond Dredger with Trommel Screen from wholesalers
    • Buy cheap Customized Carbon Steel Bucket Chain River Gold and Diamond Dredger with Trommel Screen from wholesalers
    • Buy cheap Customized Carbon Steel Bucket Chain River Gold and Diamond Dredger with Trommel Screen from wholesalers
    • Buy cheap Customized Carbon Steel Bucket Chain River Gold and Diamond Dredger with Trommel Screen from wholesalers
    • Buy cheap Customized Carbon Steel Bucket Chain River Gold and Diamond Dredger with Trommel Screen from wholesalers
    • Buy cheap Customized Carbon Steel Bucket Chain River Gold and Diamond Dredger with Trommel Screen from wholesalers
    • Buy cheap Customized Carbon Steel Bucket Chain River Gold and Diamond Dredger with Trommel Screen from wholesalers

    Customized Carbon Steel Bucket Chain River Gold and Diamond Dredger with Trommel Screen

    Ask Lasest Price
    Certification : ISO 9000, ISO 14001,ISO 20000, ISO 14064, LEED, ISO 10012, ISO 17025
    Supply Ability : 2500set /Year
    Price : Negotiable
    Delivery Time : Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
    Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram, Cash
    • Product Details
    • Company Profile

    Customized Carbon Steel Bucket Chain River Gold and Diamond Dredger with Trommel Screen

    Bucket chain river gold and daimond dredger with trommel screen

    1.Company profile :
    Qingzhou Set Sail Dredging Machinery Equipment Co., Ltd. is one of the leading dredging factory in China . Cutter suction dredger river mining machinery land mining machinery Chain bucket sand dredger jet suction dredger service working boat trailing hoper dredger Wheel bucke suction dredger so on .our product are exproted all part of the world such as Aisa,Afrrica,South America,Middle Easr and other regions.

    2. Product featers :
    Bucket Chain River Gold and Daimond Dredger with Trommel Screen

    The dredging bucket rotates around the underwater dredging wheel. scooping up the solid in the riverbed. then trommel classifier. with single layer or double layer screens. will separate the gravels. clay balls. water plants with need sand. The find sand with fine gold & gold nuggests will be finished selection by the gold centrifuge.pulsating sluice box and fixed sluice box. After 3 process of gold panning. the gold recovery percentage can be upto 90%.

    Our bucket chain gold dredger is very fir for the alluvial sand with gold. If the river sand with a lot of big pebbles. the bucket chain type is one perfect choice.


    3.FAQ:
    1How many cubic meter per hour for the deal capacity?
    2How many meters for the dredge depth?
    3In the dredging raw ore, the sand & stone percentage? stone's size in mm?
    4. the gold particle size in mm?
    5if you will require the diesel generator? and any special requirement for the generator brand?

    4. Product picture:
    mining dredger overview :

    Chain bucket river mining dredger is used for river gold . diamond . tin and sand iron powder so on . The bucket chain gold dredger use the buckets, driven by guide wheels on continuous rotation on the bucket bridge. sand .mud and stone so on are digged by the bucket with chain from the water above .Bucket rotates around the underwater dredging wheel, scooping up the solid in the riverbed. then into the separating system, solids larger than 10 mm will go into the tail-box, tailing discharged to place far away from gold dredger. Less than 10 mm of material from the flow channel into the Gold Sands separation system, based on the difference between the relative density of sand and gold, gold will fall into the bottom since of the high density,sand and other material will float on the surface,and discharged to the tail system by water
    mining dredger application :
    Our factory is a professtional enterprise in the mineral field . our chain bucket mining dredger is suitable for river .lake .reservoir and gangue so on . use bucket gold dredger can get the gold . diamond and orin ore and other minerals . outstanding performance can get 85%-95% in recovery percentage .meantime we can offer the first -class fine seletion equipment .
    Bucket Chain River Gold and Daimond Dredger with Trommel Screen
    Bucket Chain River Gold and Daimond Dredger with Trommel Screen
    Bucket Chain River Gold and Daimond Dredger with Trommel Screen

    5. Mainly part picture:
    gold dredger working principle :
    Chain bucket gold dredger . throuth the electric motor to drive chain bucket dig the mixture of sand .mud . stone and gold. then the bucket put mixture into the the drum screen to separate mixture . Standard material will into the gold seledtion device to select by vibration . non -standard material will into the river by belt convery or other place . all power from generator sets . position use the winch to fix the dold dredger when it is working .
    Bucket Chain River Gold and Daimond Dredger with Trommel Screen
    Bucket Chain River Gold and Daimond Dredger with Trommel Screen
    Bucket Chain River Gold and Daimond Dredger with Trommel Screen

    6. Selecting mining equipment picture:
    Bucket Chain River Gold and Daimond Dredger with Trommel Screen
    Bucket Chain River Gold and Daimond Dredger with Trommel Screen
    Bucket Chain River Gold and Daimond Dredger with Trommel Screen

    7.Specification :
    ModelHJ-M60HJ-M80HJ-M100HJ-M120HJ-M150
    Hull size24*4.5*127*5.4*130*4.8*135*7.6*1.238*6.6*1.2
    Dredging depth7m12m13m15m18m
    Drum screen(L*DIA)1.4*1.22.4*1.42.4*1.42.4*1.42.6*1.5
    Drum screen power5.5KW5.5KW5.5KW7.5KW11KW
    Generator power75KW75KW75KW75KW75KW
    Chain bucket quantity8662628686
    Chain bucket capacity0.035KG0.05KG0.08KG0.08KG0.08KG
    Chain quantity172124124172172
    Chain size600*100*30600*100*30800*100*35800*120*40800*120*40

    8. Mainly product :Bucket Chain River Gold and Daimond Dredger with Trommel Screen
